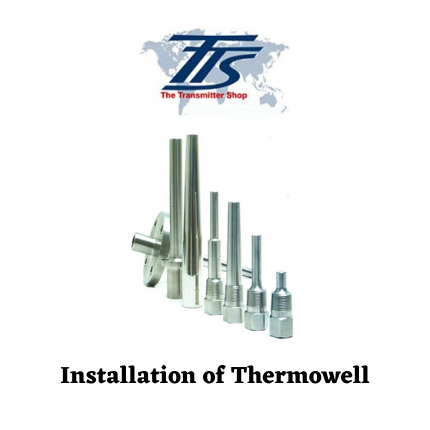

A Beginner’s Guide for Installation of Thermowell
Thermowells are essential components in industrial processes, serving as protective barriers for temperature sensors immersed in fluids. Their primary function is to safeguard sensors from direct contact with the medium being measured, ensuring accurate readings and extending the lifespan of the equipment. However, their effectiveness hinges on proper installation. For those unfamiliar with the process, this article provides comprehensive guidance on installing one or more thermowells in industrial settings, along with key considerations to keep in mind.
### Guidelines for Installing Thermowells
Installing thermowells demands precision and careful planning. Key aspects include selecting the right thermowell, determining the insertion depth, choosing the mounting method, and installing protective shields. Let's delve deeper into each step.
#### 1. Calculating Immersion Depth
The immersion depth of a thermowell depends on the diameter of the pipe or vessel. Generally, the thermowell should be inserted to about one-third or two-thirds of the fluid stream's depth. Additionally, the length of the temperature sensor within the thermowell should be less than 1-2 inches shorter than the total length of the thermowell itself. This ensures that the sensitive portion of the sensor is adequately exposed for accurate measurement.
#### 2. Choosing the Right Mounting Method
There are several mounting options for thermowells, each suited to specific applications:
- **Perpendicular to the Pipe (90°):** Ideal for installing multiple thermowells in series. Ensure the tip does not touch the far wall of the pipe.
- **At a 45° Angle:** Suitable for placing thermowells around the circumference of the pipe, maintaining a 45° angle between them.
- **At Elbows:** Thermowells can be installed at pipe bends, either facing upstream or downstream, to monitor temperature and pressure changes effectively.
#### 3. Installing Protective Shields
To avoid incorrect temperature readings caused by variations between the pipe wall and the sensor, install a shield between the pipe wall and the sensor. This shield minimizes interference and ensures accurate data collection.
### Important Considerations During Installation
When installing thermowells, it’s crucial to consider several factors:
- The type of fluid (liquid or gas) being measured.
- Additional parameters like pressure and flow rate.
- The distance between the sensor and any pipe fittings.
### Ensuring Quality and Reliability
After understanding the installation guidelines, it's equally important to ensure the quality of your thermowells. Trusted suppliers like The Transmitter Shop provide top-notch products, including thermowells and temperature transmitters. With years of experience, they offer reliable devices, calibration services, and repair solutions.
