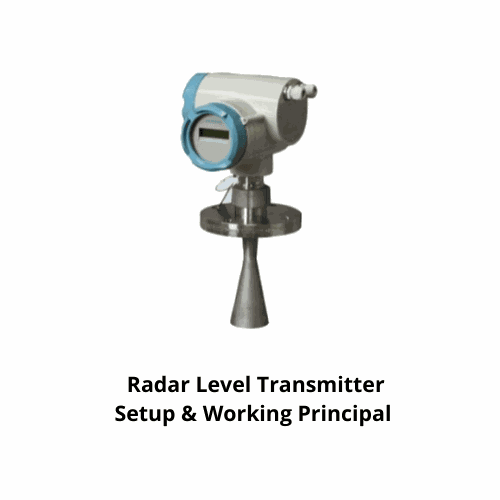

Radar Level Transmitters: Setup and Working Principle
Radar level transmitters are electronic devices specifically designed for measuring fluid levels. Utilizing radar technology, these transmitters send out electromagnetic waves to detect the level of fluids without making direct contact. Operating within the microwave X-band frequency range at approximately 10 GHz, these transmitters have become indispensable tools in industries such as mining, boiler systems, and paper production. Their ability to perform non-contact measurements has made them particularly popular in environments where physical contact could lead to contamination or equipment damage. In this two-part blog series, we’ll explore how radar level transmitters function and why they’ve become so widely adopted across multiple sectors.
## Radar Level Transmitter Configuration
Before diving into how radar level transmitters operate, it’s essential to grasp their basic configuration. Let’s break down the key components and how they come together in a typical setup.
### Solid-State Oscillator
The solid-state oscillator serves as the transmitter of electromagnetic signals. It generates waves that are directed toward the fluid surface to gauge its depth. By acting as the origin point for these waves, the oscillator ensures precise measurement without any physical interference.
### Radar Antenna
Functioning as both a transmitter and receiver, the radar antenna bridges the gap between the fluid environment and the electromagnetic wave source. It captures the reflected signals from the fluid surface and relays them to the next stage of processing.
### Receiver and Signal Processor System
The receiver unit, often a microprocessor-based hardware component, transforms the incoming signals into readable outputs. The signal processor then digitizes this information for further analysis and display purposes.
In addition to these core elements, many modern radar level transmitters include a user-friendly setup wizard. This software interface facilitates remote control and customization of the device settings, enhancing usability and flexibility.
## The Science Behind Radar Level Transmitters
At the heart of radar level transmitters lies the principle of Time Domain Reflectometry (TDR), also referred to as Time of Flight (TOF) radar measurement. Here's a simplified explanation of how these devices determine fluid levels:
1. **Signal Emission**: The transmitter emits electromagnetic waves toward the fluid surface using the solid-state oscillator. The distance between the oscillator and the fluid surface becomes the focal point for measurement.
2. **Reflection Detection**: When the emitted waves encounter the fluid surface, they bounce back as pulses. These reflected signals are picked up by the radar antenna and transmitted to the receiver.
3. **Time Calculation**: The receiver measures the time elapsed between sending the initial signal and receiving the reflected pulse. Using this time interval, the signal processor calculates the distance traveled by the waves, which corresponds to the fluid depth based on TDR principles.
It’s worth noting that the effectiveness of radar level transmitters can vary depending on the dielectric constant (DC) of the fluid being measured. High DC fluids produce stronger reflections, while lower DC materials may absorb more of the emitted signals, potentially affecting accuracy.
---
